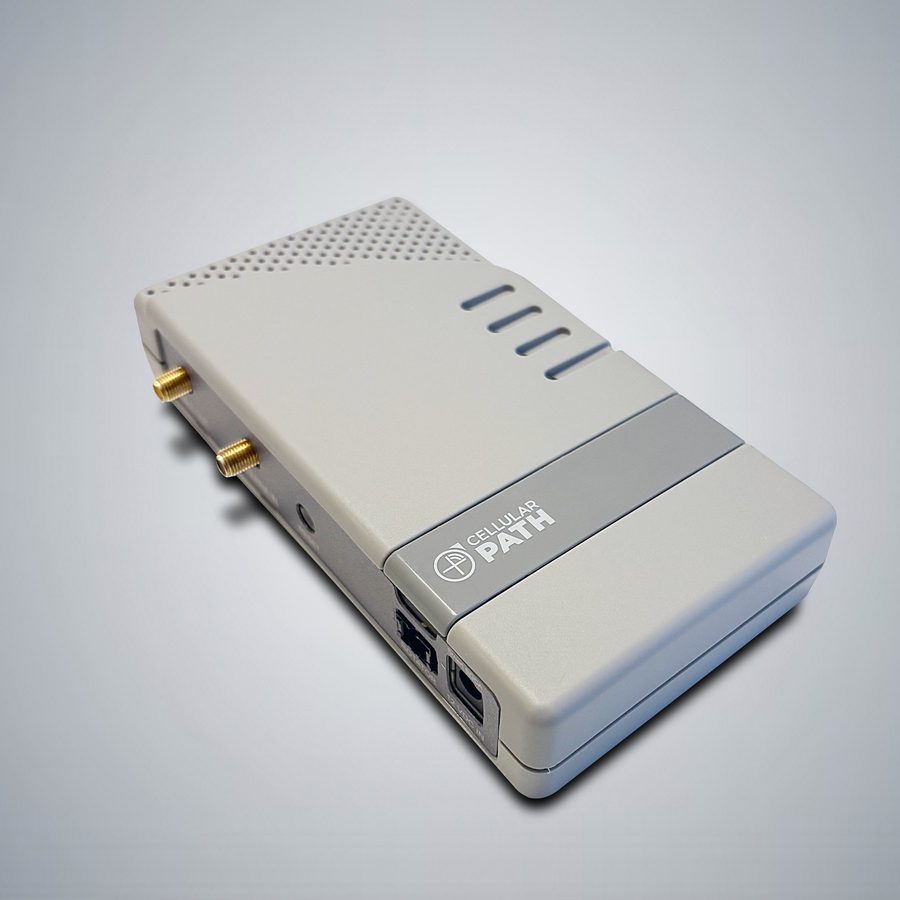

The indoor controller for the Smart 4G model at an angle, showing the two SMA antenna ports on its left edge.
SOCA-01-T-4G50 Smart 4G

A Rotator That Reports On Its Own Connection.

The Smart controller carries an LTE module and takes a SIM of its own, so it reports from a site with no network to borrow.

Sell SOCAWhat SOCA Does

The Figures

  • 360 degree sweep
  • 12 positions
  • Under 5 minutes

Cellular Path figures.

How It Works

A Rotator With Its Own 4G Connection

  • Mount
    Two V-bolts on a pole 25 to 57 mm in diameter. The supplied antenna pole carries the directional antenna above it.
  • Fit A SIM
    One slot in the controller. The access point name is set at commissioning and the data sits on the customer's own account.
  • Scan, Then Re-Aim
    Twelve positions, alignment in under five minutes, and the scan re-run from the app or the web portal whenever the network moves.

The Numbers

RotatorDie-cast aluminium and glass-filled polycarbonate. 2.3 kg, and 590 mm overall with the supplied 356 mm antenna pole fitted
MountingTwo V-bolts on a pole 25 to 57 mm in diameter. Maximum antenna weight 36 kg
Wind97 km/h sustained, gusts to 145 km/h
EnvironmentRotator IPX2, minus 29 to 60 C. The controller is an indoor unit and carries no ingress rating
ConnectorFour-pin M12
Cable15 m power and control, supplied. Extensions of 15 m and 30 m
Power12 V DC from a 2 A supply, 24 W maximum
ModuleTelit CMB100A0-WW, with one SIM slot in the controller
Band supportUK-tested bands: LTE 1, 3, 7, 8, 20, 28. The datasheet lists the rest
AntennaSISO directional on a single coax run, into two SMA female ports at 50 ohm
ControllerPC/ABS. 152 x 81 x 33 mm, 0.23 kg. 2.4 GHz Wi-Fi and Bluetooth for pairing

Cellular Path's two datasheets give the maximum antenna weight as 80 lb on one model and 100 lb on the other, for the same rotator. We publish the lower until Cellular Path confirms one figure.

Cellular Path figures.

In The Box

SuppliedRotator, controller, 356 mm antenna pole, two V-bolts, 15 m power and control cable
Not suppliedThe SIM, the directional antenna, the coax and the mounting pole. SOCA supplies the aim, not the link

The Unit

A SOCA rotator seen from the side, mounted on a pole.
The rotator, pole mounted. Photograph: Cellular Path.

The Other Model

Already a cellular router on site? SOCA-02 No Modem uses it and costs less.

Read The No Modem Page

Manufacturer

The Cellular Path logo.

Distributed in the UK by Boothroyd Distribution.

Boothroyd Distribution is an authorised UK distributor of Cellular Path. Specifications and photographs are Cellular Path's own, used with its permission. The installation photographs were taken in the United States. Cellular Path and SOCA are trade marks of Cellular Path, Inc.
