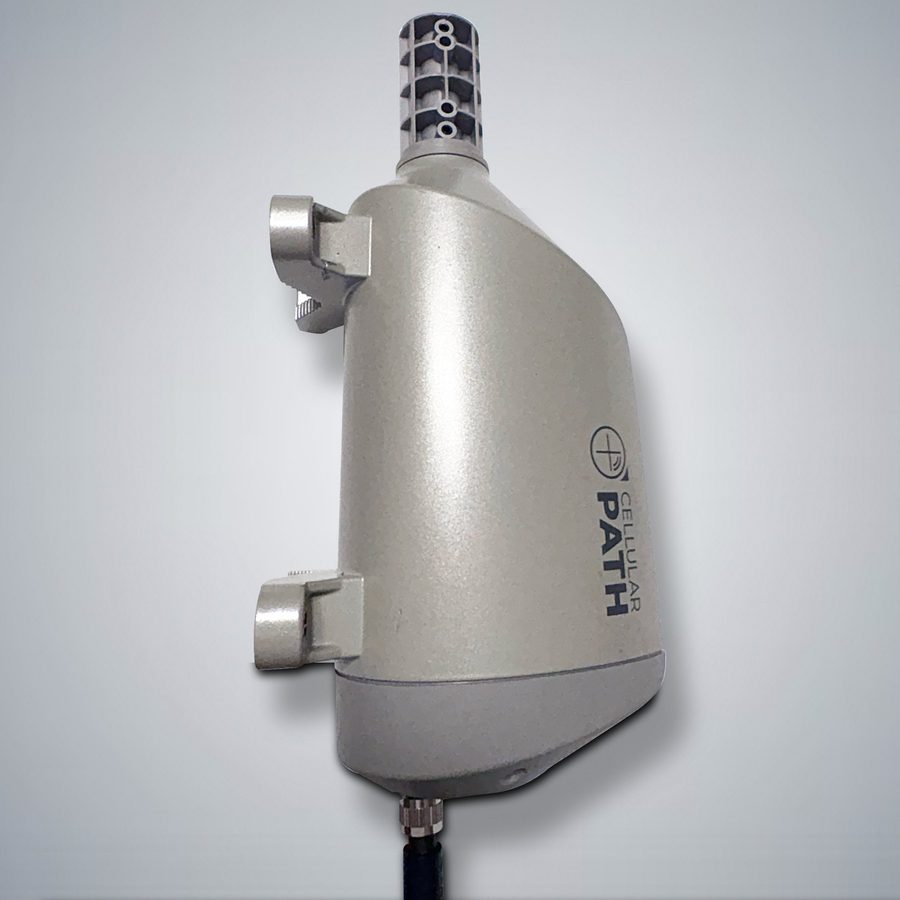

Side view of a SOCA rotator showing the two mast clamps and the cable gland at its base.
SOCA-02 No Modem

No Second Modem. No Second SIM.

The controller joins the router's own 2.4 GHz network and reads that router's figures while the rotator scans. The modem stays the one you already fit.

Sell SOCAWhat SOCA Does

The Figures

  • 360 degree sweep
  • 12 positions
  • Under 10 minutes

Cellular Path figures.

How It Works

A Rotator For The Router You Already Fit

  • Mount
    Two V-bolts on a pole 25 to 57 mm in diameter. The supplied antenna pole carries the directional antenna above it.
  • Pair
    The controller couples to the router's 2.4 GHz network. Take the router's wireless credentials and its administrator login to site.
  • Scan, Then Re-Aim
    Twelve positions, alignment in under ten minutes, and the scan re-run from the app or the web portal whenever the network moves.

The Numbers

RotatorDie-cast aluminium and glass-filled polycarbonate. 2.3 kg, and 590 mm overall with the supplied 356 mm antenna pole fitted
MountingTwo V-bolts on a pole 25 to 57 mm in diameter. Maximum antenna weight 36 kg
Wind97 km/h sustained, gusts to 145 km/h
EnvironmentRotator IPX2, minus 29 to 60 C. The controller is an indoor unit and carries no ingress rating
ConnectorFour-pin M12
Cable15 m power and control, supplied. Extensions of 15 m and 30 m
Power12 V DC from a 2 A supply, 24 W maximum
AntennaMIMO, two by two or four by four, on multiple coax runs to the indoor router
ControllerPC/ABS. 152 x 81 x 33 mm, 0.23 kg. 2.4 GHz Wi-Fi with WPA2-PSK and WPA2-Enterprise, Bluetooth for pairing
ModemNone. The site's own router carries the modem and the SIM

Cellular Path's two datasheets give the maximum antenna weight as 80 lb on one model and 100 lb on the other, for the same rotator. We publish the lower until Cellular Path confirms one figure.

Cellular Path figures.

In The Box

SuppliedRotator, controller, 356 mm antenna pole, two V-bolts, 15 m power and control cable
Not suppliedThe directional antenna, the coax, the router and the mounting pole. SOCA supplies the aim, not the link

The Unit

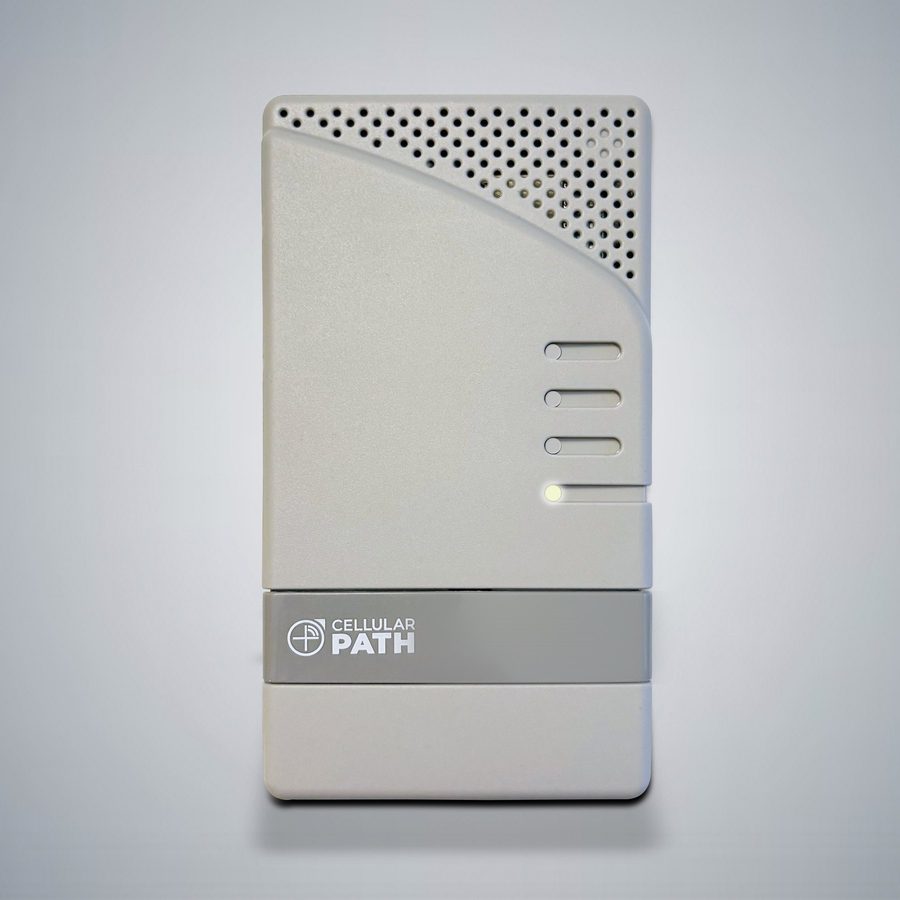

The indoor controller for the No Modem model, a plain wall unit with four status lights down one edge.
The indoor controller. Photograph: Cellular Path.

Routers

SOCA-02 No Modem reads the router's own figures, so the router has to be one Cellular Path has verified. It verifies seven models from four manufacturers; the United Kingdom variants are still being confirmed. Ask and we will send the current list.

Ask For The Verified Router List

The Other Model

No router to borrow? SOCA-01-T-4G50 Smart 4G has an LTE module of its own.

Read The Smart 4G Page

Manufacturer

The Cellular Path logo.

Distributed in the UK by Boothroyd Distribution.

Boothroyd Distribution is an authorised UK distributor of Cellular Path. Specifications and photographs are Cellular Path's own, used with its permission. The installation photographs were taken in the United States. Cellular Path and SOCA are trade marks of Cellular Path, Inc.
